Dremel

Repetition and Definition Levels

message Document {
    required int64 DocId;
    optional group Links {
        repeated int64 Backward;
        repeated int64 Forward;
    }
    repeated group Name {
        repeated group Language {
            required string Code;
            optional string Country;
        }
        optional string Url;
    }
}

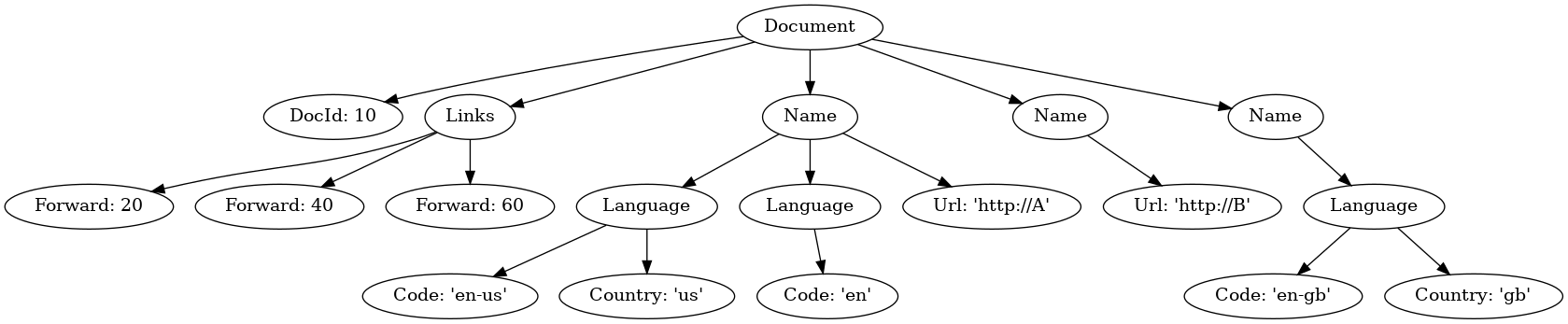

# r1
DocId: 10
Links
    Forward: 20
    Forward: 40
    Forward: 60
Name
    Language
        Code: 'en-us'
        Country: 'us'
    Language
        Code: 'en'
    Url: 'http://A'
Name
    Url: 'http://B'
Name
    Language
        Code: 'en-gb'
        Country: 'gb'

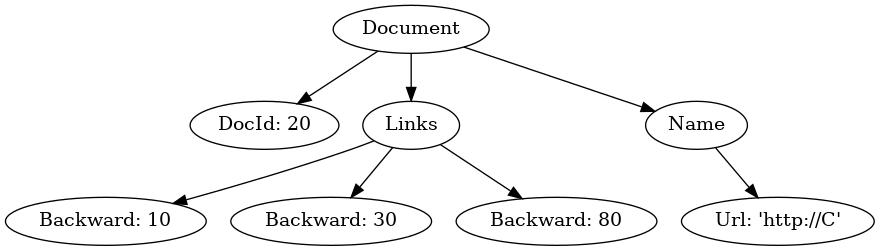

# r2
DocId: 20
Links
    Backward: 10
    Backward: 30
    Backward: 80
Name
    Url: 'http://C'

Repetition Level

It tells us at what repeated field in the field’s path the value has repeated.

在 Repetition Level 小节，我们会使用 [] 和矩形表达 repeated 字段，不包括 optional 字段（注意与 Definition Level 小节区分）。

Name.Language.Code

论文以 Name.Language.Code 为例子解释了 repetition level ：

Now suppose we are scanning record r1 top down.

When we encounter 'en-us', we have not seen any repeated fields, i.e., the repetition level is 0.

When we see 'en', field Language has repeated, so the repetition level is 2.

Finally, when we encounter 'en-gb', Name has repeated most recently (Language occurred only once after Name), so the repetition level is 1.

笔者认为论文的解释有点模糊，按照以下步骤计算 repetition level 更为准确，深度优先遍历整棵树：

1. 若字段是第一次出现，repetition level 记为 0 ；
2. 若字段不是第一次出现：
   1. 找到上一次出现的同名字段；
   2. 找到最近公共祖先；
   3. 找到最近公共祖先的子节点；
   4. 计算最近公共祖先的子节点在路径上是第几个 repeated （不包括 optional ）字段。

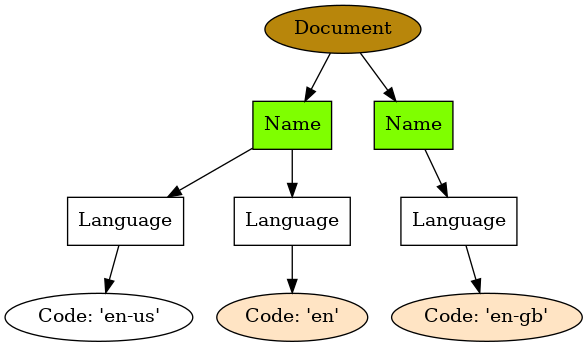

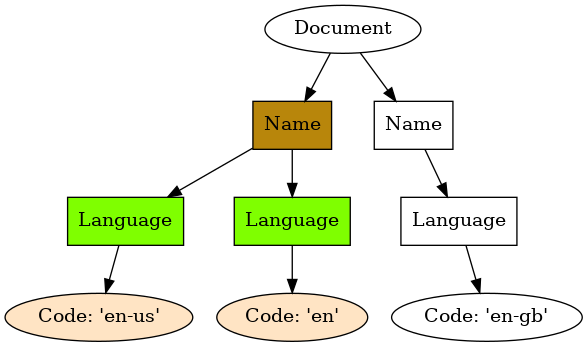

value of Document.[Name].[Language].Code	repeated with	repeated at	common father of 'repeated at'	repetition level
en-us				0
en	en-us	Language	Name	2
en-gb	en	Name	Document	1

Others

value of Document.DocId	repeated with	repeated at	common father of 'repeated at'	repetition level
10				0

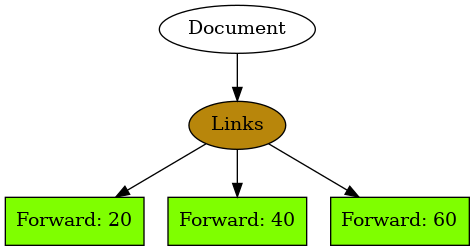

value of Document.[Links].[Forward]	repeated with	repeated at	common father of 'repeated at'	repetition level
20				0
40	20	Forward	Links	1
60	40	Forward	Links	1

value of Document.[Name].[Language].Country	repeated with	repeated at	common father of 'repeated at'	repetition level
us				0
gb	us	Name	Document	1

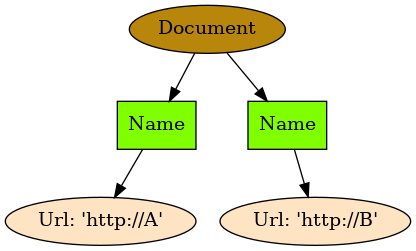

value of Document.[Name].Url	repeated with	repeated at	common father of 'repeated at'	repetition level
http://A				0
http://B	http://A	Name	Document	1

Definition Level

Each value of a field with path p, esp. every NULL, has a definition level specifying how many fields in p that could be undefined (because they are optional or repeated) are actually present in the record.

在 Definition Level 小节，我们会使用 [] 和矩形表达 optional 字段和 repeated 字段（注意与 Repetition Level 小节区分）。

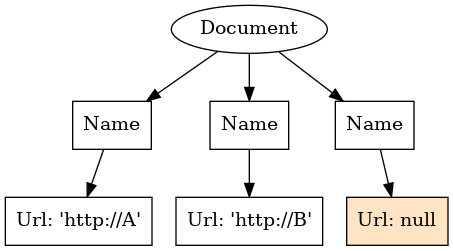

value of Document.[Name].[Url]	definition level
http://A	2
http://B	2
null	1

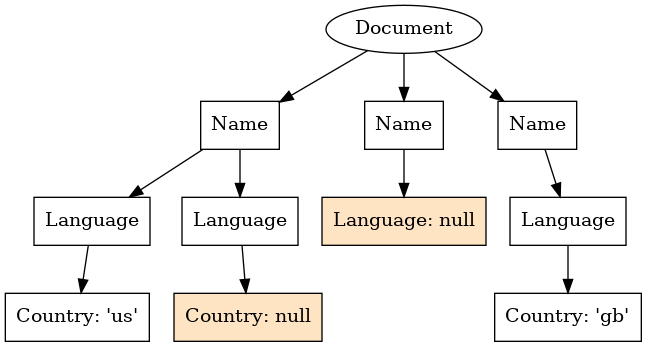

value of Document.[Name].[Language].[Country]	definition level
us	3
null	2
null	1
gb	3

为什么使用 definition level 而不是 bool 值来表达叶子节点是否出现？因为 definition level 能携带更多信息：

We use integer definition levels as opposed to is-null bits so that the data for a leaf field (e.g., Name.Language.Country) contains the information about the occurrences of its parent fields.

Encoding

论文主要介绍了工程上优化存储的方法，对原理没有实质性影响，可忽略不看。

Splitting Records into Columns

1. 深度优先遍历树；
2. 计算 repetition level ：
   1. 如果字段在本层重复，repetition level = tree depth ；
   2. 如果字段未在本层重复，repetition level = repetition level of father ；
3. 计算 definition level （略）。

Record Assembly

Given a subset of fields, our goal is to reconstruct the original records as if they contained just the selected fields, with all other fields stripped away.

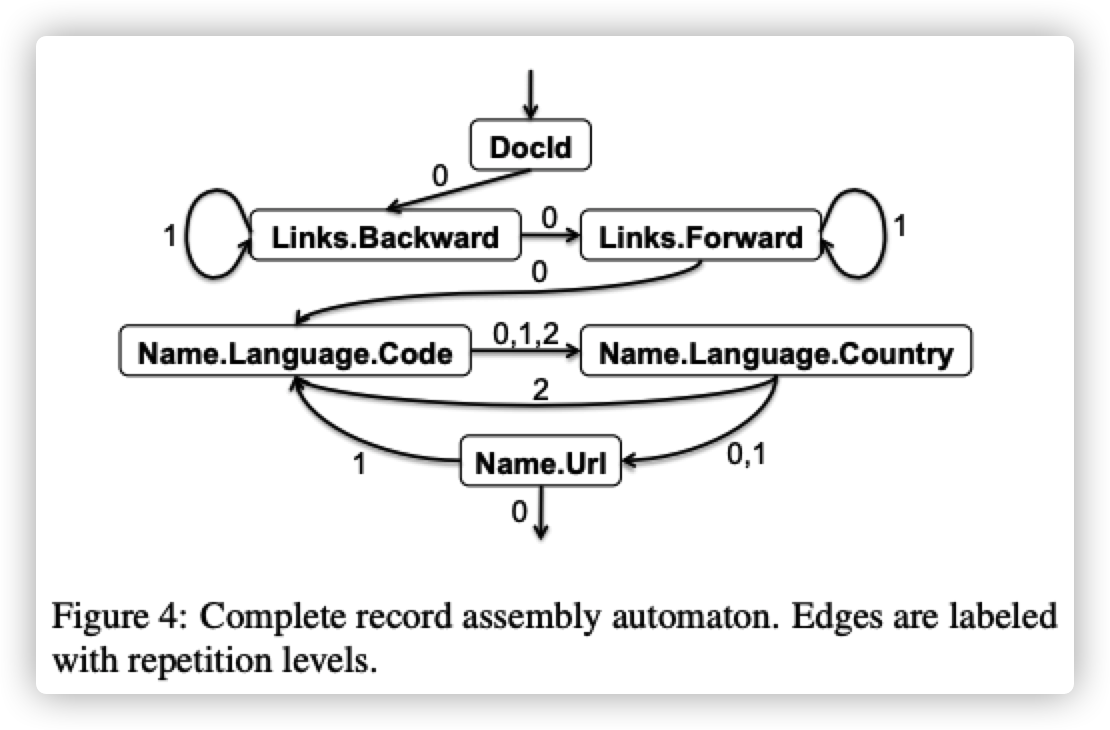

The key idea is this: we create a finite state machine (FSM) that reads the field values and levels for each field, and appends the values sequentially to the output records. An FSM state corresponds to a field reader for each selected field. State transitions are labeled with repetition levels. Once a reader fetches a value, we look at the next repetition level to decide what next reader to use. The FSM is traversed from the start to end state once for each record.

组装算法分为两部分：

1. 创建有限状态机：用 repetition level 判断当前 column 读完之后跳到哪一个祖先节点。
2. 运行有限状态机。

运行有限状态机

有限状态机只能依次读入 column （否则不知道 record 边界），有没有并行化的算法？

创建有限状态机

To sketch how FSM transitions are constructed, let l be the next repetition level returned by the current field reader for field f. Starting at f in the schema tree, we find its ancestor that repeats at level l and select the first leaf field n inside that ancestor. This gives us an FSM transition (f, l) -> n. For example, let l = 1 be the next repetition level read by f = Name.Language.Country. Its ancestor with repetition level 1 is Name, whose first leaf field is n = Name.Url.

repetition level 告诉我们：当前节点读完之后，应该返回到哪一个祖先节点。

Definition Level 提供的信息用在哪里？

判断在路径的哪一个层次上插入 null ？

问题汇总

1. 分割和组装算法是否可以并行化？
2. 是否允许变更 schema ？比如：Document 下新增 Description 字段。
3. definition level 提供的信息用在哪里？
