导读

  1. 指定编译选项 -Wl,--hash-style=both 时，dynsym section 的符号排列顺序需要满足 gnu hash table 的要求，具体可参考 Dynamic Linking: Search Symbols In One Binary ：
    1. LOCAL 符号排在 GLOBAL 符号之前；
    2. 导入符号排在导出符号之前；
    3. 导出符号按桶排序；
  2. ELF: symbol lookup via DT_HASH 将 SysV hash table 讲得非常清楚：
    1. SysV hash table 的长度和 dynamic symbol table 的长度相同；
    2. bucket 记录每个桶的起始符号；
    3. chain 是 dynamic symbol table 的附属指针数组；
    4. chain[id] 将 Ndx = STN_UNDEF 的符号作为结束符。

SysV hash table 详解

1
2
3
4
5
6
7
// test_hash.cpp
// g++ -std=c++11 -shared -fPIC -Wl,--hash-style=both test_hash.cpp -o libtest_hash.so
void foo() {}
void bar() {}
void test() {}
void haha() {}
void more() {}

元数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
void _dl_setup_hash(struct link_map* map) {
  if (__glibc_likely(map->l_info[ADDRIDX(DT_GNU_HASH)] != NULL)) {
    // ...
    return;
  }

  if (!map->l_info[DT_HASH]) {
    return;
  }
  // The entries in the .hash table always have a size of 32 bits.
  Elf_Symndx* hash = (void*)D_PTR(map, l_info[DT_HASH]);
  map->l_nbuckets = *hash++;
  // Skip nchain.
  hash++;
  map->l_buckets = hash;
  hash += map->l_nbuckets;
  map->l_chain = hash;
}
1
2
3
4
5
6
struct elf_hash_table {
  uint32_t nbucket;
  uint32_t nchain;
  uint32_t bucket[nbucket];
  uint32_t chain[nchain];
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# readelf --section-headers libtest_hash.so  | grep -E "Nr|hash" -A1 | grep -v "\-\-"
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [ 2] .hash             HASH             00000000000001b8  000001b8
       0000000000000058  0000000000000004   A       4     0     8
  [ 3] .gnu.hash         GNU_HASH         0000000000000210  00000210
       000000000000004c  0000000000000000   A       4     0     8
# export hash_start_addr=0x1b8
# export hash_size=0x58
# od --skip-bytes=$hash_start_addr --read-bytes=$hash_size --format=xI libtest_hash.so
0000670 00000003 00000011 0000000f 0000000a
0000710 0000000e 00000000 00000000 00000000
0000730 00000002 00000009 00000004 00000008
0000750 00000000 00000000 00000010 00000005
0000770 0000000d 00000003 0000000c 00000006
0001010 0000000b 00000007
nbucket nchain bucket[bucket] chain[nchain]
0x3 0x11 [0xf, 0xa, 0xe] [0x0, ...]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# readelf --dyn-syms libtest_hash.so
Symbol table '.dynsym' contains 17 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
     1: 0000000000000608     0 SECTION LOCAL  DEFAULT   10
     2: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND __gmon_start__
     3: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _Jv_RegisterClasses
     4: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_deregisterTMCloneTab
     5: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_registerTMCloneTable
     6: 0000000000000000     0 FUNC    WEAK   DEFAULT  UND __cxa_finalize@GLIBC_2.2.5 (2)
     7: 000000000000075a     6 FUNC    GLOBAL DEFAULT   12 _Z4hahav
     8: 0000000000000760     6 FUNC    GLOBAL DEFAULT   12 _Z4morev
     9: 0000000000000754     6 FUNC    GLOBAL DEFAULT   12 _Z4testv
    10: 0000000000200b08     0 NOTYPE  GLOBAL DEFAULT   23 _end
    11: 0000000000200b00     0 NOTYPE  GLOBAL DEFAULT   22 _edata
    12: 000000000000074e     6 FUNC    GLOBAL DEFAULT   12 _Z3barv
    13: 0000000000000748     6 FUNC    GLOBAL DEFAULT   12 _Z3foov
    14: 0000000000200b00     0 NOTYPE  GLOBAL DEFAULT   23 __bss_start
    15: 0000000000000608     0 FUNC    GLOBAL DEFAULT   10 _init
    16: 0000000000000768     0 FUNC    GLOBAL DEFAULT   13 _fini

nchain 是 17 ，chain 的长度是 17 ，dynamic symbol table 有 17 个 entries 。

哈希函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#include <cstdint>
#include <ios>
#include <iostream>
#include <vector>

uint32_t elf_hash(const char* name) {
  uint32_t h = 0, g;
  for (; *name; name++) {
    h = (h << 4) + *name;
    if (g = h & 0xf0000000) {
      h ^= g >> 24;
    }
    h &= ~g;
  }
  return h;
}

int main() {
  std::cout << std::hex;
  std::vector<const char*> symbol_names{"_Z4hahav",
                                        "_Z4morev",
                                        "_Z4testv",
                                        "_Z3barv",
                                        "_Z3foov",
                                        "_end",
                                        "_edata",
                                        "__bss_start",
                                        "_init",
                                        "_fini"};
  for (const char* symbol_name : symbol_names) {
    std::cout << "0x" << elf_hash(symbol_name) << std::endl;
  }
}
dynsym_id symbol_name hash_value bucket_id
7 _Z4hahav 0xdae78c6 1
8 _Z4morev 0xdb46e86 2
9 _Z4testv 0xdbaccf6 1
10 _end 0x65c44 1
11 _edata 0x65ba8a1 0
12 _Z3barv 0x4d988f6 0
13 _Z3foov 0x4d9d606 0
14 __bss_start 0x90ff134 2
15 _init 0x660504 0
16 _fini 0x65d049 1

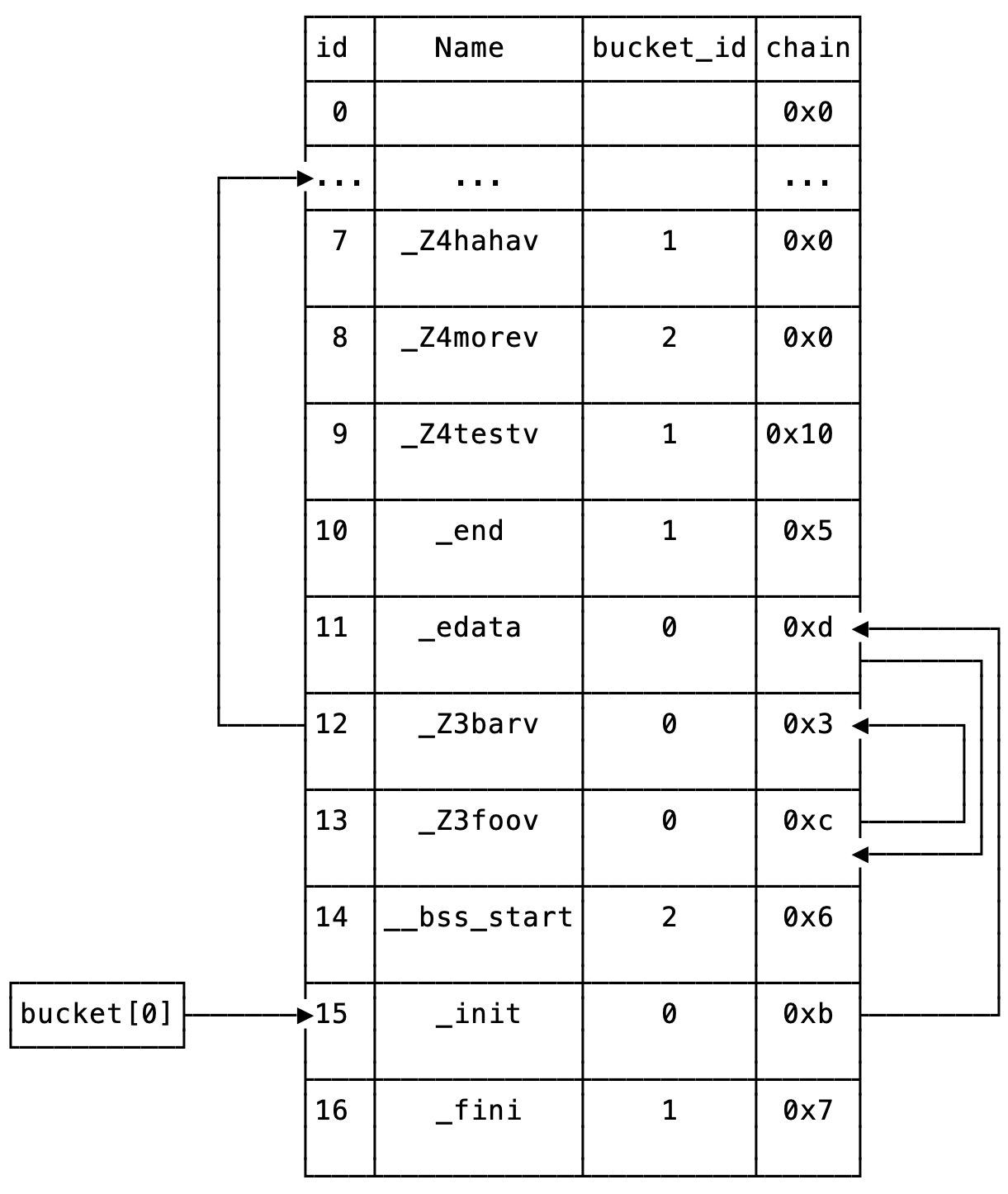

哈希表
