Relocation Types

导读

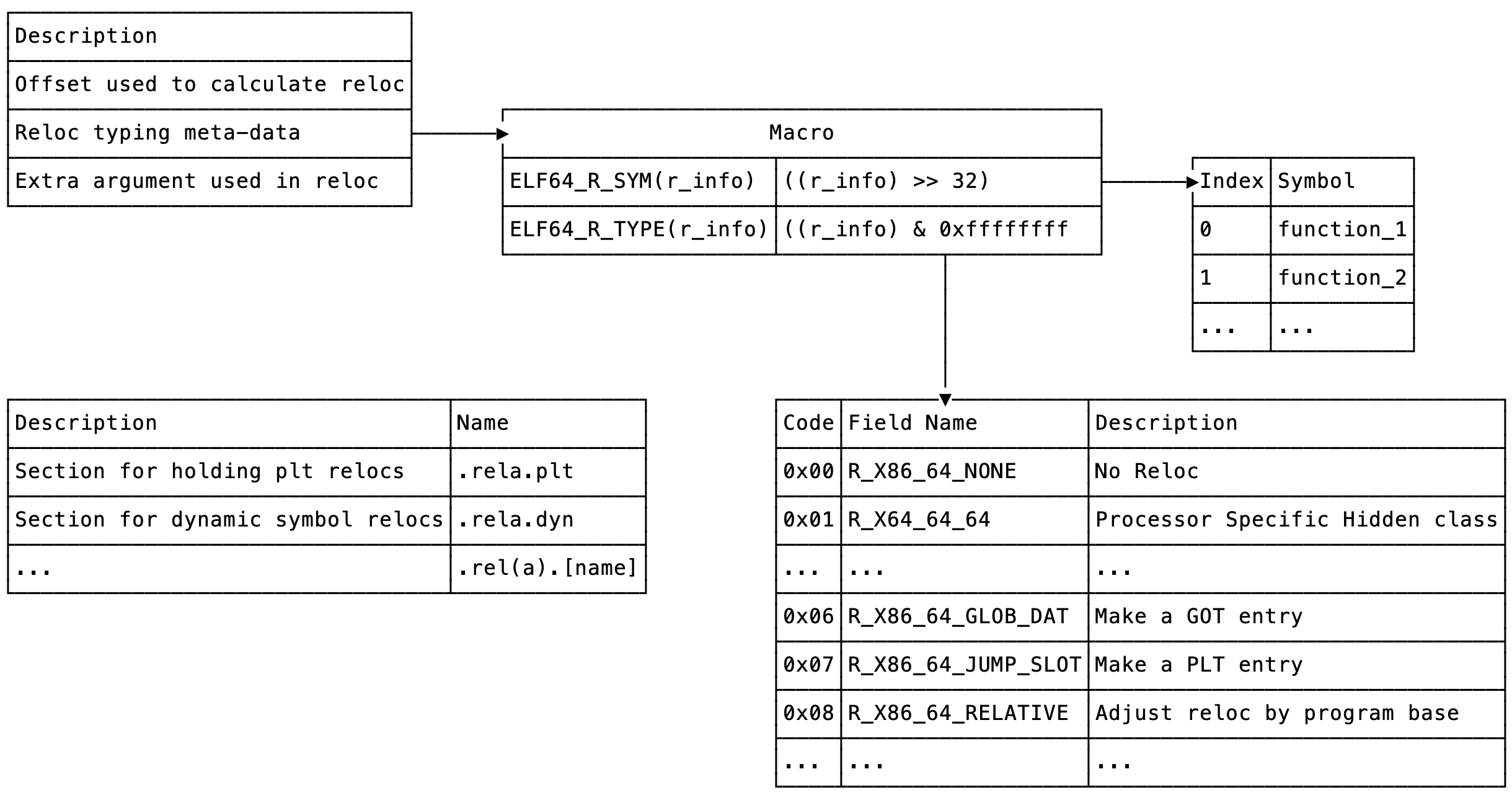

下图摘自 Keith Makan: Introduction to The ELF Format (Part VI): The Symbol Table and Relocations (Part 2) ，展示了 relocation entry 的格式：

详解

1
2
3
4
5
6
7
8
// foo.cpp
// g++ -std=c++11 foo.cpp -O0 -ggdb -shared -fPIC -o libfoo.so
#include <iostream>
int a = 1;
int* pa = &a;
extern int b;
int* pb = &b;
void foo() { std::cout << *pa + *pb << std::endl; }
1
2
3
4
5
6
7
8
// main.cpp
// g++ main.cpp -O0 -ggdb -Wl,--dynamic-linker=/root/glibc/build/install/lib/ld-linux-x86-64.so.2 \
//     -L${PWD} -Wl,-rpath=${PWD} -lfoo                                                           \
//     -Wl,-rpath=/usr/lib/x86_64-linux-gnu                                                       \
//     -Wl,-rpath=/lib/x86_64-linux-gnu                                                           \
//     -o main
int b = 1;
int main() {}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# readelf --relocs libfoo.so
Relocation section '.rela.dyn' at offset 0x5e0 contains 15 entries:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000003db0  000000000008 R_X86_64_RELATIVE                    1130
000000003db8  000000000008 R_X86_64_RELATIVE                    11c5
000000003dc0  000000000008 R_X86_64_RELATIVE                    10f0
000000004038  000000000008 R_X86_64_RELATIVE                    4038
000000003fb8  000100000006 R_X86_64_GLOB_DAT 0000000000000000 __cxa_finalize@GLIBC_2.2.5 + 0
000000003fc0  000200000006 R_X86_64_GLOB_DAT 0000000000000000 _ZSt4endlIcSt11char_tr@GLIBCXX_3.4 + 0
000000003fc8  000500000006 R_X86_64_GLOB_DAT 0000000000000000 _ZSt4cout@GLIBCXX_3.4 + 0
000000003fd0  000f00000006 R_X86_64_GLOB_DAT 0000000000004048 pa + 0
000000003fd8  001000000006 R_X86_64_GLOB_DAT 0000000000004050 pb + 0
000000003fe0  000900000006 R_X86_64_GLOB_DAT 0000000000000000 _ITM_deregisterTMClone + 0
000000003fe8  000a00000006 R_X86_64_GLOB_DAT 0000000000000000 __gmon_start__ + 0
000000003ff0  000b00000006 R_X86_64_GLOB_DAT 0000000000000000 _ITM_registerTMCloneTa + 0
000000003ff8  000c00000006 R_X86_64_GLOB_DAT 0000000000000000 _ZNSt8ios_base4InitD1E@GLIBCXX_3.4 + 0
000000004048  000d00000001 R_X86_64_64       0000000000004040 a + 0
000000004050  000700000001 R_X86_64_64       0000000000000000 b + 0

Relocation section '.rela.plt' at offset 0x748 contains 4 entries:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000004018  000300000007 R_X86_64_JUMP_SLO 0000000000000000 __cxa_atexit@GLIBC_2.2.5 + 0
000000004020  000400000007 R_X86_64_JUMP_SLO 0000000000000000 _ZNSolsEPFRSoS_E@GLIBCXX_3.4 + 0
000000004028  000600000007 R_X86_64_JUMP_SLO 0000000000000000 _ZNSt8ios_base4InitC1E@GLIBCXX_3.4 + 0
000000004030  000800000007 R_X86_64_JUMP_SLO 0000000000000000 _ZNSolsEi@GLIBCXX_3.4 + 0

从 United Computer Wizards: Relocation Types 找到 AMD x86-64 relocation types ：

Name Value Field Calculation
R_X86_64_NONE 0 none none
R_X86_64_64 1 word64 S + A
R_X86_64_COPY 5 none none
R_X86_64_GLOB_DAT 6 word64 S
R_X86_64_JUMP_SLOT 7 word64 S
R_X86_64_RELATIVE 8 word64 BaseAddressAfterLoading + Addend

R_X86_64_64

System V Application Binary Interface: AMD64 Architecture Processor Supplement 说 R_X86_64_64 的重定位公式是：S + A 。

S represents the value of the symbol whose index resides in the relocation entry. A represents the addend used to compute the value of the relocatable field.

  1. 不妨将 S 理解成符号在虚存中的地址，A 理解成相对于符号的偏移量；
  2. 计算 S 需要在所有动态链接库中搜索符号，因此重定位 R_X86_64_64 表项会用到符号绑定。
1
2
3
# LD_DEBUG=bindings ./main 2>&1 | grep -E "\<a\>|\<b\>"
656: binding file /root/talk/relocation_types/libfoo.so [0] to /root/talk/relocation_types/libfoo.so [0]: normal symbol `a'
656: binding file /root/talk/relocation_types/libfoo.so [0] to ./main [0]: normal symbol
  1. 无论符号是否在同一个动态链接库内，重定位 R_X86_64_64 表项都会发生符号绑定；
  2. Symbol value of pa 是 a 的地址，symbol value of pb 是 0 ，两者对符号查找有什么影响？

R_X86_64_RELATIVE

1
2
3
4
5
6
7
# readelf --relocs libfoo.so
Relocation section '.rela.dyn' at offset 0x5e0 contains 15 entries:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000003db0  000000000008 R_X86_64_RELATIVE                    1130
000000003db8  000000000008 R_X86_64_RELATIVE                    11c5
000000003dc0  000000000008 R_X86_64_RELATIVE                    10f0
000000004038  000000000008 R_X86_64_RELATIVE                    4038
1
2
3
4
# objdump -d -j .text libfoo.so | grep -E "(1130|11c5|10f0|4038).*>:" | sort
00000000000010f0 <__do_global_dtors_aux>:
0000000000001130 <frame_dummy>:
00000000000011c5 <_GLOBAL__sub_I_foo.cpp>:
1
2
3
4
(gdb) p/x 0x7ffff7fcb000 + 0x4038
$1 = 0x7ffff7fcf038
(gdb) x/a 0x7ffff7fcb000 + 0x4038
0x7ffff7fcf038: 0x7ffff7fcf038

.rela.dyn 指导运行时链接器：

  1. 将 0x3db0 填上 frame_dummy 的首地址；
  2. 将 0x3db8 填上 _GLOBAL__sub_I_foo.cpp 的首地址；
  3. 将 0x3dc0 填上 __do_global_dtors_aux 的首地址；
  4. 将 0x4038 指向它自己。

R_X86_64_GLOB_DAT

从 Acronyms relevant to Executable and Linkable Format (ELF) 摘抄了一段概述：

So what about R_X86_64_GLOB_DAT relocation type in ld.so? First, RESOLVE_MAP (a macro defined within elf/dl-reloc.c) is called (with r_type = R_X86_64_GLOB_DAT) to find out which ELF binary (could be the user's program or its dependent dynamic libraries) contains this symbol. Then R_X86_64_GLOB_DAT relocation type is calculated as Base Address + Symbol Value + Addend where Base Address is the base address of ELF binary which contains the symbol, and Symbol Value is the symbol value from the symbol table of ELF binary which contains the symbol.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
// elf_machine_rela 内嵌在 _dl_relocate_object 内，因而可以使用定义于 _dl_relocate_object 作用域内的变量。
void elf_machine_rela(struct link_map* map,
                      const ElfW(Rela) * reloc,
                      const ElfW(Sym) * sym,
                      const struct r_found_version* version,
                      void* const reloc_addr_arg,
                      int skip_ifunc) {
  ElfW(Addr)* const reloc_addr = reloc_addr_arg;
  const unsigned long int r_type = ELFW(R_TYPE)(reloc->r_info);
  struct link_map* sym_map = RESOLVE_MAP(&sym, version, r_type);
  // The core function of `RESOLVE_MAP` macro is:
  // _dl_lookup_symbol_x(strtab + sym->st_name,
  //                     l,
  //                     &sym,
  //                     scope,
  //                     version,
  //                     elf_machine_type_class(r_type),
  //                     DL_LOOKUP_ADD_DEPENDENCY,
  //                     NULL);
  ElfW(Addr) value = SYMBOL_ADDRESS(sym_map, sym, true);
  // The core function of `SYMBOL_ADDRESS` macro is:
  // sym_map->l_addr + sym->st_value;
  switch (r_type) {
  case R_X86_64_GLOB_DAT:
  case R_X86_64_JUMP_SLOT:
    *reloc_addr = value + reloc->r_addend;
    break;
  }
}

R_X86_64_JUMP_SLO

Debug 技巧

通过以下步骤能迅速定位到执行重定位的函数：

  1. 通过 info proc mappings 得到动态链接库在虚拟内存中的偏移量（通过 info sharedlibrary 得到的是 .text section 的地址）；
  2. 通过 watch *(unsigned long long*)(<l_addr> + <offset>) 得到改变值的函数栈。
1
2
3
(gdb) info proc mappings
          Start Addr           End Addr       Size     Offset objfile
      0x7ffff7fcb000     0x7ffff7fcc000     0x1000        0x0 /test/libfoo.so
1
2
3
4
5
6
7
8
(gdb) watch *(unsigned long long*)(0x7ffff7fcb000 + 0x4038)
Hardware watchpoint 2: *(unsigned long long*)(0x7ffff7fcb000 + 0x4038)
(gdb) start
Hardware watchpoint 2: *(unsigned long long*)(0x7ffff7fcb000 + 0x4038)
Old value = <unreadable>
New value = 140737353936952
0x00007ffff7fe159c in elf_machine_rela_relative (reloc_addr_arg=0x7ffff7fcf038, reloc=0x7ffff7fcb5c8, l_addr=140737353920512) at ../sysdeps/x86_64/dl-machine.h:539
539           *reloc_addr = l_addr + reloc->r_addend;
