Introduction To Elf File

导读

“工欲善其事，必先利其器。”

本文会介绍 ELF 文件以及阅读 ELF 文件的工具，熟悉 ELF 文件对探索动态链接是很有好处的。

环境

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
FROM debian:buster
LABEL maintainer="837940593@qq.com"

ENV DEBIAN_FRONTEND noninteractive
RUN apt-get update
RUN apt-get install -y build-essential bear make gcc g++ gdb

# Compile linker.
RUN mkdir /root/glibc
WORKDIR /root/glibc
RUN apt-get install -y wget
RUN apt-get install -y gawk bison texinfo gettext
RUN wget http://ftp.gnu.org/gnu/libc/glibc-2.28.tar.gz
RUN tar -xzvf glibc-2.28.tar.gz
RUN mkdir build
WORKDIR /root/glibc/build
RUN ../glibc-2.28/configure CFLAGS="-O1 -ggdb -w" --with-tls --enable-add-ons=nptl --prefix="$PWD/install"
RUN bear make -j8
RUN make install -j8

# Install tools.
# Install hexdump.
RUN apt-get install -y bsdmainutils
# Install lief.
RUN apt-get install -y python3 python3-pip
RUN pip3 install lief

CMD /bin/bash
1
2
3
4
5
# uname -r
4.19.76-linuxkit
# cat /etc/*-release | grep -E "VERSION_ID|ID"
VERSION_ID="10"
ID=debian
1
2
3
4
# gcc --version | head -n 1
gcc (Debian 8.3.0-6) 8.3.0
# ldd --version | head -n 1
ldd (Debian GLIBC 2.28-10) 2.28

一个小例子

1
2
// gcc -fPIC -ggdb -O0 -shared -Wl,--dynamic-linker=/root/glibc/build/install/lib/ld-linux-x86-64.so.2 foo.cpp -o libfoo.so
void foo() {}
1
2
3
4
5
// g++ main.cpp -L$PWD -Wl,-rpath=$PWD -Wl,--dynamic-linker=/root/glibc/build/install/lib/ld-linux-x86-64.so.2 -lfoo -o main
extern void foo();
int main() {
    foo();
}

了解 ELF 文件

工具概述

Dump 二进制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# od --skip-bytes=0 --read-bytes=8 --format=xL main
# 64 bits
0000000 00010102464c457f
0000010
# od --skip-bytes=0 --read-bytes=8 --format=xI main
# 32 bits
0000000 464c457f 00010102
0000010
# od --skip-bytes=0 --read-bytes=8 --format=xS main
# 16 bits
0000000 457f 464c 0102 0001
0000010
# od --skip-bytes=0 --read-bytes=8 --format=xC main
# 8 bits
0000000 7f 45 4c 46 02 01 01 00
0000010
# od --skip-bytes=0 --read-bytes=8 --format=xC -c main
# 8 bits with characters
0000000  7f  45  4c  46  02  01  01  00
        177   E   L   F 002 001 001  \0
0000010

阅读字符串：

1
2
3
4
5
6
7
# dd if=libfoo.so of=libfoo.strtab ibs=1 obs=1 skip=$((0x3660)) count=$((0x15e))
350+0 records in
350+0 records out
350 bytes copied, 0.000862803 s, 406 kB/s
# strings libfoo.strtab | head -n 2
crtstuff.c
deregister_tm_clones

查找字符串：

1
2
3
# strings -t x libfoo.so | head -n 2
319 __gmon_start__
328 _ITM_deregisterTMCloneTable

x 表示用十六进制显示字符串的 offset 。

Dump 汇编代码

1
2
3
4
5
6
7
8
9
10
11
# objdump -d libfoo.so --start-address=0x1020 --stop-address=$((0x1020+0x10))
0000000000001020 <.plt>:
    1020:   ff 35 e2 2f 00 00       pushq  0x2fe2(%rip)  # 4008 <_GLOBAL_OFFSET_TABLE_+0x8>
    1026:   ff 25 e4 2f 00 00       jmpq   *0x2fe4(%rip) # 4010 <_GLOBAL_OFFSET_TABLE_+0x10>
    102c:   0f 1f 40 00             nopl   0x0(%rax)
# objdump -d -j .text main | tail -n 2
00000000000011b0 <__libc_csu_fini>:
    11b0:       c3                      retq
# objdump -d --disassemble-zeroes -j .data main | tail -n 2
0000000000004028 <__dso_handle>:
    4028:       28 40 00 00 00 00 00 00                             (@......

Dump 元信息

1
2
3
# readelf --file-header main
# readelf --program-headers main
# readelf --section-headers main

解析特定 sections

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# readelf --dynamic main | head -n 5 | tail -n 4
Dynamic section at offset 0x2dd8 contains 28 entries:
  Tag        Type                         Name/Value
 0x0000000000000001 (NEEDED)             Shared library: [libfoo.so]
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
# readelf --symbols main | grep "Symbol" -A2
Symbol table '.dynsym' contains 7 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
--
Symbol table '.symtab' contains 69 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
# readelf --dyn-syms main | grep "Symbol" -A2
Symbol table '.dynsym' contains 7 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
# readelf --relocs main | grep "Relocation" -A2
Relocation section '.rela.dyn' at offset 0x4c8 contains 8 entries:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000003dc8  000000000008 R_X86_64_RELATIVE                    1130
--
Relocation section '.rela.plt' at offset 0x588 contains 1 entry:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000004018  000400000007 R_X86_64_JUMP_SLO 0000000000000000 _Z3foov + 0
# readelf -p .strtab main | head -n 5 | tail -n 4
String dump of section '.strtab':
  [     1]  crtstuff.c
  [     c]  deregister_tm_clones
  [    21]  __do_global_dtors_aux

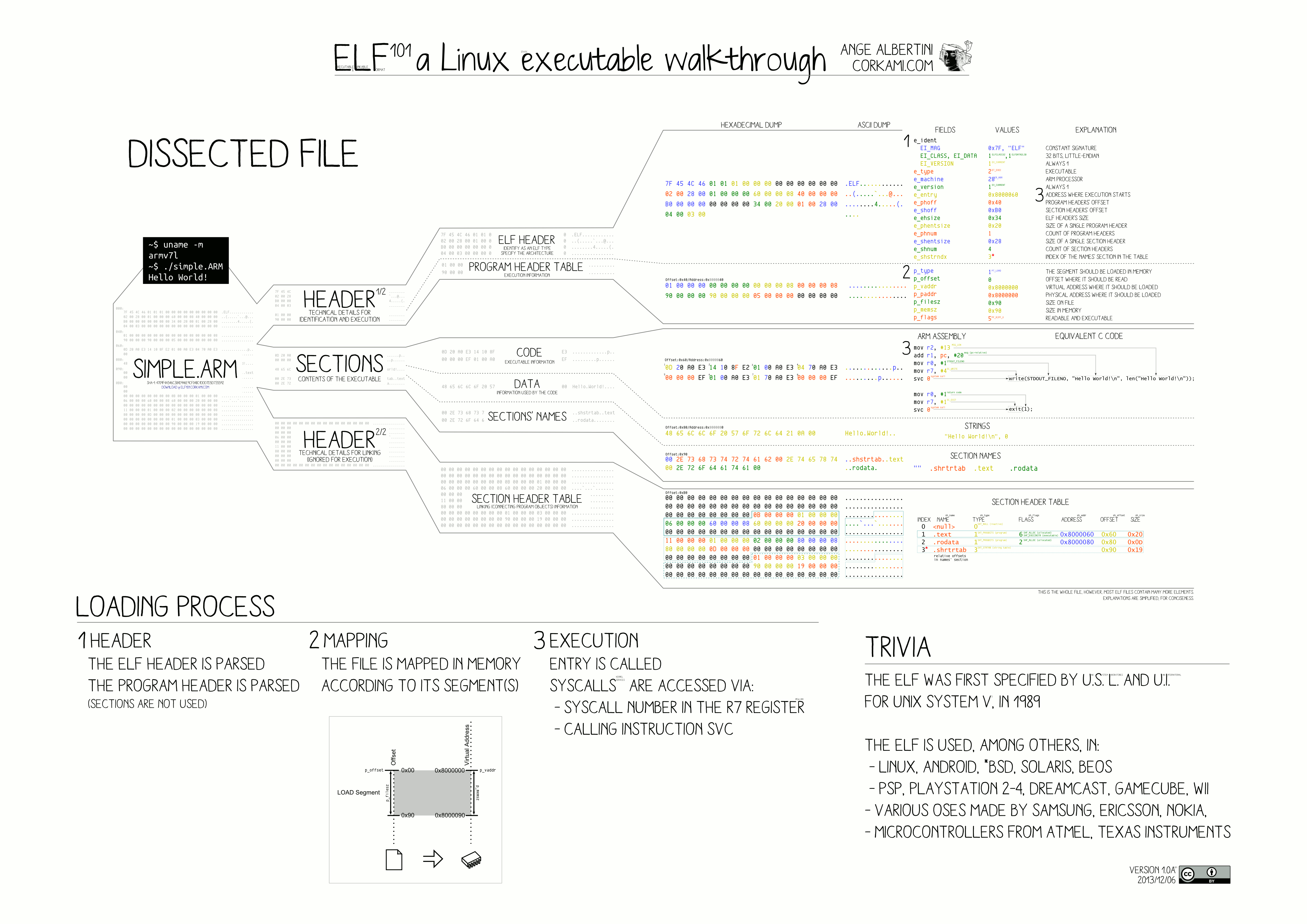

ELF 文件概述

File Header 和 Program Header 在 ELF 文件的开头，Section Header 在 ELF 文件的结尾。

接下来我们会用 readelf 直接查看元数据，也会用 od 以二进制方式看看每一个 Header 。

File Header

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# readelf --file-header main
ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              DYN (Shared object file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0x1050
  Start of program headers:          64 (bytes into file)
  Start of section headers:          14680 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           56 (bytes)
  Number of program headers:         11
  Size of section headers:           64 (bytes)
  Number of section headers:         30
  Section header string table index: 29

File Header 各个字段的含义可以参考维基百科 。

The ELF header is 52 or 64 bytes long for 32-bit and 64-bit binaries respectively.

1
# od --skip-bytes=0 --read-bytes=64 --format=xC main
位移（八进制） 内容 解释
0000000 7f 45 4c 46 ELF (magic number).
02 1 is 32-bit format, 2 is 64-bit format.
01 1 is big endianness, 2 is litte endianness.
01 Set to 1 for the original and current version of ELF.
00 ABI version, it is often set to 0.
00 Further specifies the ABI version.
00 00 00 00 00 00 00 Padding, should be filled with zeros.
0000020 03 00 Identifies object file type, 0x3 is ET_DYN.
3e 00 Specifies instruction set architecture, 0x3e is amd64.
01 00 00 00 Set to 1 for the original version of ELF.
50 10 00 00 00 00 00 00 Entry point address.
0000040 40 00 00 00 00 00 00 00 The start of the program header table. 0x40 = 64.
58 39 00 00 00 00 00 00 The start of the section header table.
0000060 00 00 00 00 Interpretation depends on the target architecture.
40 00 Size of file header.
38 00 Size of a program header table entry.
0b 00 Number of entries in the program header table.
40 00 Size of a section header table entry.
1e 00 Number of entries in the section header table.
1d 00 Index of the section header table entry that contains the section names.
0000100

File Header 帮助链接器：

  1. 确认是否可以装载文件，包括系统是 32 位还是 64 位、大小端、ABI 版本等；
  2. 决定如何装载文件，包括 Program Header 和 Section Header 的位置及大小、如何寻找 section 名称、entry point address 等。

Program Header

1
2
3
4
5
6
7
8
9
10
# readelf --program-headers main
Program Headers:
  Type           Offset             VirtAddr           PhysAddr
                 FileSiz            MemSiz              Flags  Align
  PHDR           0x0000000000000040 0x0000000000000040 0x0000000000000040
                 0x0000000000000268 0x0000000000000268  R      0x8
  INTERP         0x00000000000002a8 0x00000000000002a8 0x00000000000002a8
                 0x0000000000000033 0x0000000000000033  R      0x1
      [Requesting program interpreter: /root/glibc/build/install/lib/ld-linux-x86-64.so.2]
  ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
// /usr/include/elf.h
typedef uint32_t Elf64_Word;
typedef uint64_t Elf64_Xword;
typedef struct
{
  Elf64_Word    p_type;                 /* Segment type */
  Elf64_Word    p_flags;                /* Segment flags */
  Elf64_Off     p_offset;               /* Segment file offset */
  Elf64_Addr    p_vaddr;                /* Segment virtual address */
  Elf64_Addr    p_paddr;                /* Segment physical address */
  Elf64_Xword   p_filesz;               /* Segment size in file */
  Elf64_Xword   p_memsz;                /* Segment size in memory */
  Elf64_Xword   p_align;                /* Segment alignment */
} Elf64_Phdr;
1
# od --skip-bytes=$((0x40 + 0x38 * 1)) --read-bytes=0x38 --format=xL main
位移（八进制） 内容 解释
0000170 00000003 PT_INTERP
00000004 Segment flags.
00000000000002a8 Segment file offset.
0000210 00000000000002a8 Segment virtual address.
00000000000002a8 Segment physical address.
0000230 0000000000000033 Segment size in file.
0000000000000033 Segment size in memory.
0000250 0000000000000001 Segment alignment.

比较让人迷惑的字段是 Segment physical address ，根据 What is a section and why do we need it 和写一个工具来了解ELF文件（二） 两篇文章，Segment physical address 在现代操作系统中已经没有用处了，GCC 一般将其置为 Segment virtual address 。

1
2
3
4
5
6
7
8
9
10
# od --skip-bytes=0x2a8 --read-bytes=0x33 --format=xC -c main
0001250  2f  72  6f  6f  74  2f  67  6c  69  62  63  2f  62  75  69  6c
          /   r   o   o   t   /   g   l   i   b   c   /   b   u   i   l
0001270  64  2f  69  6e  73  74  61  6c  6c  2f  6c  69  62  2f  6c  64
          d   /   i   n   s   t   a   l   l   /   l   i   b   /   l   d
0001310  2d  6c  69  6e  75  78  2d  78  38  36  2d  36  34  2e  73  6f
          -   l   i   n   u   x   -   x   8   6   -   6   4   .   s   o
0001330  2e  32  00
          .   2  \0
0001333

根据 Program Header 的指导，从 0x2a8 开始连续读 0x33 个字节，就是 interpreter 在文件系统中的路径。

Program Header 最重要的作用是指导链接器如何装载 ELF 文件，要注意：由于对齐或者前面的某个 Segment 在文件中的大小和在内存中的大小不一致，Segment 在文件中的起始地址未必等于在内存中的起始地址，比如：

1
2
3
4
5
6
# readelf --program-headers main
  Type           Offset             VirtAddr           PhysAddr
                 FileSiz            MemSiz              Flags  Align
  ...
  LOAD           0x0000000000002dc8 0x0000000000003dc8 0x0000000000003dc8
                 0x0000000000000268 0x0000000000000270  RW     0x1000

LOAD Segment 在文件中的起始地址是 0x2dc8 ，在内存中的起始地址是 0x3dc8 ，两者并不相等。

Section Header

1
2
3
4
5
6
7
8
9
10
11
# readelf --section-headers main
Section Headers:
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  ...
  [13] .plt.got          PROGBITS         0000000000001040  00001040
       0000000000000008  0000000000000008  AX       0     0     8
  ...
  [28] .strtab           STRTAB           0000000000000000  00003650
       00000000000001fa  0000000000000000           0     0     1
  ...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
typedef uint32_t Elf64_Word;
typedef uint64_t Elf64_Xword;
typedef struct
{
  Elf64_Word    sh_name;                /* Section name (string tbl index) */
  Elf64_Word    sh_type;                /* Section type */
  Elf64_Xword   sh_flags;               /* Section flags */
  Elf64_Addr    sh_addr;                /* Section virtual addr at execution */
  Elf64_Off     sh_offset;              /* Section file offset */
  Elf64_Xword   sh_size;                /* Section size in bytes */
  Elf64_Word    sh_link;                /* Link to another section */
  Elf64_Word    sh_info;                /* Additional section information */
  Elf64_Xword   sh_addralign;           /* Section alignment */
  Elf64_Xword   sh_entsize;             /* Entry size if section holds table */
} Elf64_Shdr;
1
# od --skip-bytes=$((0x3958 + 0x40 * 13)) --read-bytes=0x40 --format=xL main
位移（八进制） 内容 解释
0036230 00000094 Section name (string table index).
00000001 Section type, SHT_PROGBITS.
0000000000000006 Section flags, SHF_ALLOC | SHF_EXECINSTR.
0036250 0000000000001040 Section virtual address.
0000000000001040 Section file offset.
0036270 0000000000000008 Section size in bytes.
00000000 Link to another section.
00000000 Additional section information.
0036310 0000000000000008 Section alignment.
0000000000000008 Entry size if section holds table.

根据 man elf 的描述，sh_link / sh_info 的含义都取决于 section 。

.plt & .got.plt / .plt.got & .got

Debug 技巧：先用 info proc mappings 获取 start address ，再用 watch *(unsigned long long*)(<start_addr> + <addr>) 就能看到改变特定地址的栈了。

  1. .plt.got & .got 同 .plt & .got.plt 一样，都是一组用于重定位的 sections ；
  2. 不同之处是：
    1. .plt.got & .got 没有 lazy binding ，由链接器直接触发重定位；
    2. .plt & .got.plt 有 lazy binding ，在第一次调用函数时触发重定位。

.plt & .got.plt

1
2
3
4
5
6
7
8
9
10
# objdump -d -j .plt main
0000000000001020 <.plt>:
    1020:       ff 35 e2 2f 00 00       pushq  0x2fe2(%rip)        # 4008 <_GLOBAL_OFFSET_TABLE_+0x8>
    1026:       ff 25 e4 2f 00 00       jmpq   *0x2fe4(%rip)        # 4010 <_GLOBAL_OFFSET_TABLE_+0x10>
    102c:       0f 1f 40 00             nopl   0x0(%rax)

0000000000001030 <_Z3foov@plt>:
    1030:       ff 25 e2 2f 00 00       jmpq   *0x2fe2(%rip)        # 4018 <_Z3foov>
    1036:       68 00 00 00 00          pushq  $0x0
    103b:       e9 e0 ff ff ff          jmpq   1020 <.plt>
1
2
3
4
5
# readelf --section-headers main | grep -E "Nr|.got.plt" -A1 | grep -v "\-\-"
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [23] .got.plt          PROGBITS         0000000000004000  00003000
       0000000000000020  0000000000000008  WA       0     0     8
1
2
3
# od --skip-bytes=$((0x1036 + 0x2fe2 - 0x4000 + 0x3000)) --read-bytes=8 --format=xL main
0030030 0000000000001036
0030040
1
2
3
4
# readelf --relocs main | grep "$(printf '%x' $((0x1036 + 0x2fe2)))" -B2
Relocation section '.rela.plt' at offset 0x590 contains 1 entry:
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000004018  000400000007 R_X86_64_JUMP_SLO 0000000000000000 _Z3foov + 0

.got.plt 表项（虚存地址是 0x1036 + 0x2fe2）会发生两次改变：

  1. 从 0x1036 变成 start address + 0x1036 ：
    1. 由运行时链接器在 .rela.plt (R_X86_64_JUMP_SLOT) 表项的指导下完成，调用栈是 dl_main -> _dl_relocate_object -> elf_dynamic_do_Rela ；
    2. 是同文件重定位，仅仅加上了 start address ，不需要查找符号，执行速度快；
  2. 从 start address + 0x1036 变成 foo 函数的首地址 ：
    1. 由用户代码在函数 foo 第一次被调用时触发，调用栈是 main -> _dl_runtime_resolve_xsavec -> _dl_fixup ；
    2. 是跨文件重定位，需要查找符号，执行速度慢。

.plt.got & .got

1
2
3
4
# objdump -d -j .plt.got main
0000000000001040 <__cxa_finalize@plt>:
    1040:       ff 25 b2 2f 00 00       jmpq   *0x2fb2(%rip)        # 3ff8 <__cxa_finalize@GLIBC_2.2.5>
    1046:       66 90                   xchg   %ax,%ax
1
2
3
4
5
# readelf --section-headers main | grep -E "Nr| .got " -A1 | grep -v "\-\-"
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [22] .got              PROGBITS         0000000000003fd8  00002fd8
       0000000000000028  0000000000000008  WA       0     0     8
1
2
3
# od --skip-bytes=$((0x1046 + 0x2fb2 - 0x3fd8 + 0x2fd8)) --read-bytes=8 --format=xL main
0027770 0000000000000000
0030000
1
2
3
# readelf --relocs main | grep -E "Offset|$(printf '%x' $((0x1046 + 0x2fb2)))"
  Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000003ff8  000600000006 R_X86_64_GLOB_DAT 0000000000000000 __cxa_finalize@GLIBC_2.2.5 + 0

.got 表项（虚存地址是 0x1046 + 0x2fb2）只会发生一次改变，从 0x0 变成 __cxa_finalize 函数的首地址：

  1. 由运行时链接器在 .rela.dyn (R_X86_64_GLOB_DAT) 表项的指导下完成，调用栈是 dl_main -> _dl_relocate_object -> elf_dynamic_do_Rela -> elf_machine_rela ；
  2. 是跨文件重定位，需要查找符号，执行速度慢。

.rela.dyn & .rela.plt

以 foo.cpp 为例：

1
2
3
4
5
6
7
// foo.cpp
#include <iostream>
namespace {
int var = 1;
void bar() { std::cout << "bar" << std::endl; }
}
void foo() {}

.rela.dyn / .rela.plt

根据 Linux Foundation Referenced Specifications: Additional Special Sections 的说法：

  1. .rela.plt section 负责配合 .plt section 完成跨文件重定位 ；
  2. .rela.dyn 负责其它类型的重定位。

.rela.dyn & .rela.plt 与 .symtab 的关系

.symtab 中的 undefined symbols 都能在 relocation sections 中找到：

1
2
3
4
5
6
7
8
9
10
11
12
13
# readelf --symbols --wide libfoo.so | grep ".symtab" -A 100 | grep "UND" | awk '{print $8}' | sort
__cxa_atexit@@GLIBC_2.2.5
__cxa_finalize@@GLIBC_2.2.5
__gmon_start__
_ITM_deregisterTMCloneTable
_ITM_registerTMCloneTable
_Jv_RegisterClasses
_ZNSolsEPFRSoS_E@@GLIBCXX_3.4
_ZNSt8ios_base4InitC1Ev@@GLIBCXX_3.4
_ZNSt8ios_base4InitD1Ev@@GLIBCXX_3.4
_ZSt4cout@@GLIBCXX_3.4
_ZSt4endlIcSt11char_traitsIcEERSt13basic_ostreamIT_T0_ES6_@@GLIBCXX_3.4
_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@@GLIBCXX_3.4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# readelf --relocs --wide libfoo.so | grep -v "\<Offset\>" | awk '{print $5}' | sort | uniq
__cxa_atexit@GLIBC_2.2.5
__cxa_finalize@GLIBC_2.2.5
__gmon_start__
_ITM_deregisterTMCloneTable
_ITM_registerTMCloneTable
_Jv_RegisterClasses
offset
_ZNSolsEPFRSoS_E@GLIBCXX_3.4
_ZNSt8ios_base4InitC1Ev@GLIBCXX_3.4
_ZNSt8ios_base4InitD1Ev@GLIBCXX_3.4
_ZSt4cout@GLIBCXX_3.4
_ZSt4endlIcSt11char_traitsIcEERSt13basic_ostreamIT_T0_ES6_@GLIBCXX_3.4
_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@GLIBCXX_3.4

参考资料

ELF (except .plt and .got.plt and etc.):

.plt and .got.plt and etc.:

.rela.dyn and .rela.plt:

Computer Science > Dynamic Linking
Introduction To Elf File
https://clcanny.github.io/2020/11/24/computer-science/dynamic-linking/introduction-to-elf-file/
作者
JunBin
发布于
2020年11月24日
许可协议
