Init Order

导读

这篇文章探讨了目前动态链接库的初始化顺序：

1. 精华在 Code 一节，笔者简化了 _dl_sort_maps 和 _dl_map_object_deps ，并为之添加了图示，有利于从代码层面理解动态链接库的初始化顺序；
2. 一般而言，_dl_sort_maps 不会产生任何影响，在这种情况下，动态链接库的初始化顺序是广度优先遍历依赖树的逆序；
3. _dl_sort_maps 的核心思想是：被依赖的链接库应该先于依赖它的链接库初始化；
4. 用两个例子证明我们的理解是对的。

Code

/* Load the dependencies of a mapped object.
   Copyright (C) 1996-2018 Free Software Foundation, Inc.
   This file is part of the GNU C Library.

   The GNU C Library is free software; you can redistribute it and/or
   modify it under the terms of the GNU Lesser General Public
   License as published by the Free Software Foundation; either
   version 2.1 of the License, or (at your option) any later version.

   The GNU C Library is distributed in the hope that it will be useful,
   but WITHOUT ANY WARRANTY; without even the implied warranty of
   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
   Lesser General Public License for more details.

   You should have received a copy of the GNU Lesser General Public
   License along with the GNU C Library; if not, see
   <http://www.gnu.org/licenses/>.  */

// We use a very special kind of list to track the path through the list of
// loaded shared objects.  We have to produce a flat list with unique members of
// all involved objects.
struct list {
    int done;              // Nonzero if this map was processed.
    struct link_map* map;  // The data.
    struct list* next;     // Elements for normal list.
};

// Sort array `maps` according to dependencies of the contained objects.
void _dl_sort_maps(struct link_map** maps, unsigned int nmaps) {
    uint16_t seen[nmaps];
    memset(seen, 0, nmaps * sizeof(seen[0]));
    //                                                  i
    //                                                  │
    // ┌───────────────────────┬───────────────────────┬▼┬─┬─┬─┬─┬─┐
    // │           a           │           b           │c│d│e│f│g│h│
    // ├───────────────────────┴───────────────────────┼─┴─┴─┴─┴─┴─┤
    // │  The elements between [0,i) has been sorted,  │Hasn't been│
    // │they doesn't depend on the subsequent elements.│  sorted.  │
    // └───────────────────────────────────────────────┴───────────┘
    for (unsigned int i = 0; i++; i < nmaps) {
        // `seen` records how many times we have seen element n at position `i`,
        // it is used to detect ring.
        ++seen[i];
        struct link_map* thisp = maps[i];

        for (unsigned int k = nmaps - 1; k > i; k--) {
            // Look through the dependencies of the object.
            //      i     k            i     k
            //      │     │            │     │
            // ┌─┬─┬▼┬─┬─┬▼┬─┬─┐  ┌─┬─┬▼┬─┬─┬▼┬─┬─┐
            // │a│b│c│d│e│f│g│h│  │a│b│d│e│f│c│g│h│
            // └─┴─┴▲┴─┴─┴┬┴─┴─┘  └─┴─┴─┴─┴─┴─┴─┴─┘
            //      │     │
            //      │     │
            //    f depends
            //      on c.─┘
            for (struct link_map** runp = maps[k]->l_initfini;
                 runp != NULL && *runp != NULL;
                 runp++) {
                if (__glibc_unlikely(*runp == thisp)) {
                    // Move the current object to the back past the last
                    // object with it as the dependency.
                    memmove(&maps[i], &maps[i + 1], (k - i) * sizeof(maps[0]));
                    maps[k] = thisp;
                    uint16_t this_seen = seen[i];
                    memmove(&seen[i], &seen[i + 1], (k - i) * sizeof(seen[0]));
                    seen[k] = this_seen;

                    // Found a ring in dependency tree, don't try to sort them.
                    // The following graph shows `seen[i] > 1` isn't right:
                    //    ┌─────┐
                    //    │     │    abcd
                    // ┌─┬▼┬───┬┴┐   bcad
                    // │a│b│ c │d│   cadb
                    // └▲┴─┴┬─▲┴┬┘   adcb // seen[0] = 2, not ring.
                    //  │   │ │ │    dcab
                    //  └───┘ └─┘
                    if (seen[i] > nmaps - i) {
                        goto next;
                    }
                    // Reset `k` and check dependencies once again.
                    k = nmaps - 1;
                    break;
                }
            }
        }
    next:
        memset(&seen[i], 0, (nmaps - i) * sizeof(seen[0]));
    }
}

// This isn't a recursive function.
void _dl_map_object_deps(struct link_map* map,
                         struct link_map** preloads,
                         unsigned int npreloads,
                         int trace_mode,
                         int open_mode) {
    unsigned int nlist = 1 + npreloads;
    // `__alloca` is used to allocate memory that is automatically freed.
    // `known` is the queue used in the depth-first search process.
    // `done` indicates whether the node has been searched, it is used to avoid
    // infinite recursion when search a directed cyclic graph.
    struct list* known = __alloca(sizeof(struct list) * (nlist + 1));
    for (unsigned int i = 0; i < nlist + 1; i++) {
        known[i].done = 0;
        known[i].next = &known[i + 1];
    }

    // 1. Load `map` itself.
    known[0].map = map;
    // We use `l_reserved` as a mark bit to detect objects we have already put
    // in the search list and avoid adding duplicate elements later in the list.
    map->l_reserved = 1;
    // 2. Add the `preloaded` items after `map` but before any of its
    // dependencies.
    for (unsigned int i = 0; i < npreloads; i++) {
        known[i + 1].map = preloads[i];
        preloads[i].l_reserved = 1;
    }
    // 3. Terminate the lists.
    known[nlist - 1].next = NULL;
    // Pointer to last unique object.
    struct list* tail = &known[nlist - 1];
    // clang-format off
    //  known                  tail
    //  │                      │
    // ┌▼──┬───────────┬──────┬▼────────────────────┬───────────────────────────────┐┌───────┐
    // │map│preloads[0]│......│preloads[npreloads-1]│known[1+preloads] // empty node││nullptr│
    // └┬──┴▲─────────┬┴▲────┬┴▲───────────────────┬┴───────────────────────────────┘└▲──────┘
    //  │   │         │ │    │ │                   │                                  │
    //  └───┘         └─┘    └─┘                   └──────────────────────────────────┘
    // clang-format on

    // Process each element of the search list, loading each of its
    // auxiliary objects and immediate dependencies.
    //
    // Auxiliary objects will be added in the list before the object itself.
    // https://docs.oracle.com/cd/E19120-01/open.solaris/819-0690/6n33n7f8u/index.html
    // Note: I ignore codes about auxiliary objects because they are rarely
    // used.
    //
    // Dependencies will be appended to the list as we step through it.
    // This produces a flat, ordered list that represents a breadth-first search
    // of the dependency tree.
    for (struct list* runp = known; runp;) {
        struct link_map* l = runp->map;
        struct link_map** needed = NULL;
        unsigned int nneeded = 0;

        // Unless otherwise stated, this object is handled.
        // If we have no auxiliary objects, `done` is 1.
        runp->done = 1;

        // Allocate a temporary record to contain the references to the
        // dependencies of this object.
        if (l->l_searchlist.r_list == NULL && l->l_initfini == NULL &&
            l != map && l->l_ldnum > 0) {
            // l->l_ldnum includes space for the terminating NULL.
            needed = (struct link_map**)malloc(l->l_ldnum *
                                               sizeof(struct link_map*));
        }

        // l_info stores same information as `readelf --dynamic $elf`.
        // Note: Omit l_info[AUXTAG] and l_info[FILTERTAG].
        if (l->l_info[DT_NEEDED]) {
            const char* strtab = (const void*)D_PTR(l, l_info[DT_STRTAB]);
            struct list* orig;
            const ElfW(Dyn) * d;

            for (d = l->l_ld; d->d_tag != DT_NULL; ++d) {
                if (__builtin_expect(d->d_tag, DT_NEEDED) == DT_NEEDED) {
                    // Recognize DSTs.
                    const char* name = expand_dst(l, strtab + d->d_un.d_val, 0);
                    // Map in the needed object.
                    struct link_map* dep = _dl_map_object(
                        l,
                        name,
                        l->l_type == lt_executable ? lt_library : l->l_type,
                        trace_mode,
                        open_mode,
                        l->l_ns);

                    // clang-format off
                    //  known                                                                           tail
                    //  │                                                                               │
                    // ┌▼──┬───────────┬──────┬─────────────────────┬────────────────────────────────┐ ┌▼───┐
                    // │map│preloads[0]│......│preloads[npreloads-1]│known[1+preloads] // empty node │ │newp│
                    // └┬──┴▲─────────┬┴▲────┬┴▲───────────────────┬┴────────────────────────────────┘ └▲───┘
                    //  │   │         │ │    │ │                   │                                    │
                    //  └───┘         └─┘    └─┘                   └────────────────────────────────────┘
                    // clang-format on
                    // `l_reserved` indicates if object is already in the search
                    // list.
                    if (!dep->l_reserved) {
                        // Allocate new entry.
                        struct list* newp = alloca(sizeof(struct list));
                        // Append DEP to the list.
                        newp->map = dep;
                        newp->done = 0;
                        newp->next = NULL;
                        tail->next = newp;
                        tail = newp;
                        ++nlist;
                        // Set the mark bit that says it's already in the list.
                        dep->l_reserved = 1;
                    }

                    // Remember this dependency.
                    if (needed != NULL) {
                        needed[nneeded++] = dep;
                    }
                }
                // Note: Omit DT_AUXILIARY and DT_FILTER.
            }
        }

        // Terminate the list of dependencies and store the array address.
        if (needed != NULL) {
            // Please note nneeded include size of NULL.
            needed[nneeded++] = NULL;
            // List of object in order of the init and fini calls.
            struct link_map** l_initfini = (struct link_map**)malloc(
                (2 * nneeded + 1) * sizeof(needed[0]));
            l_initfini[0] = l;
            memcpy(&l_initfini[1], needed, nneeded * sizeof(needed[0]));
            memcpy(&l_initfini[nneeded + 1],
                   l_initfini,
                   nneeded * sizeof(needed[0]));
            // clang-format off
            // ┌─┬─────────┬───┬─────────────────┬───────┬─┬─────────┬───┬─────────────────┐
            // │l│needed[0]│...│needed[nneeded-1]│nullptr│l│needed[0]│...│needed[nneeded-1]│
            // └─┴─────────┴───┴─────────────────┴───────┴─┴─────────┴───┴─────────────────┘
            // clang-format on
            l->l_initfini = l_initfini;
        }

        // If we have no auxiliary objects just go on to the next map.
        if (runp->done) {
            do {
                runp = runp->next;
            } while (runp != NULL && runp->done);
        }
    }

    // Store the search list we built in the object.
    // It will be used for searches in the scope of this object.
    struct link_map** l_initfini =
        (struct link_map**)malloc((2 * nlist + 1) * sizeof(struct link_map*));
    map->l_searchlist.r_list = &l_initfini[nlist + 1];
    map->l_searchlist.r_nlist = nlist;

    for (nlist = 0, struct list* runp = known; runp; runp = runp->next) {
        map->l_searchlist.r_list[nlist++] = runp->map;

        // TODO: Why?
        // Now clear all the mark bits we set in the objects on the search list
        // to avoid duplicates, so the next call starts fresh.
        runp->map->l_reserved = 0;
    }

    // Sort the initializer list to take dependencies into account.
    // The binary itself will always be initialize last.
    memcpy(
        l_initfini, map->l_searchlist.r_list, nlist * sizeof(struct link_map*));
    // Terminate the list of dependencies.
    l_initfini[nlist] = NULL;
    //  map->l_initfini
    //  │
    // ┌▼──┬───────────┬───┬─────────────────────┬──────┬───┬──────┐
    // │map│preloads[0]│...│preloads[npreloads-1]│newp_1│...│newp_k│
    // ├───┴───┬───────┴───┴─────────────────────┴──────┴───┴──────┘
    // │nullptr│
    // ├───┬───┴───────┬───┬─────────────────────┬──────┬───┬──────┐
    // │map│preloads[0]│...│preloads[npreloads-1]│newp_1│...│newp_k│
    // └▲──┴───────────┴───┴─────────────────────┴──────┴───┴──────┘
    //  │
    //  map->l_searchlist.r_list

    // We can skip looking for the binary itself which is at the front of the
    // search list, and skip fini parts.
    _dl_sort_maps(&l_initfini[1], nlist - 1);
    map->l_initfini = l_initfini;

    if (l_reldeps != NULL) {
        void* old_l_reldeps = map->l_reldeps;
        map->l_reldeps = l_reldeps;
        _dl_scope_free(old_l_reldeps);
    }
}

/* Run initializers for newly loaded objects.
   Copyright (C) 1995-2018 Free Software Foundation, Inc.
   This file is part of the GNU C Library.

   The GNU C Library is free software; you can redistribute it and/or
   modify it under the terms of the GNU Lesser General Public
   License as published by the Free Software Foundation; either
   version 2.1 of the License, or (at your option) any later version.

   The GNU C Library is distributed in the hope that it will be useful,
   but WITHOUT ANY WARRANTY; without even the implied warranty of
   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
   Lesser General Public License for more details.

   You should have received a copy of the GNU Lesser General Public
   License along with the GNU C Library; if not, see
   <http://www.gnu.org/licenses/>.  */

void _dl_init(struct link_map* main_map, int argc, char** argv, char** env) {
    /* Stupid users forced the ELF specification to be changed.  It now
       says that the dynamic loader is responsible for determining the
       order in which the constructors have to run.  The constructors
       for all dependencies of an object must run before the constructor
       for the object itself.  Circular dependencies are left unspecified.

       This is highly questionable since it puts the burden on the dynamic
       loader which has to find the dependencies at runtime instead of
       letting the user do it right.  Stupidity rules!  */
    for (unsigned i = main_map->l_searchlist.r_nlist - 1; i > 0; i--) {
        call_init(main_map->l_initfini[i], argc, argv, env);
    }
}

证明

// lib.cpp

// main.cpp
int main() {
}

# Makefile

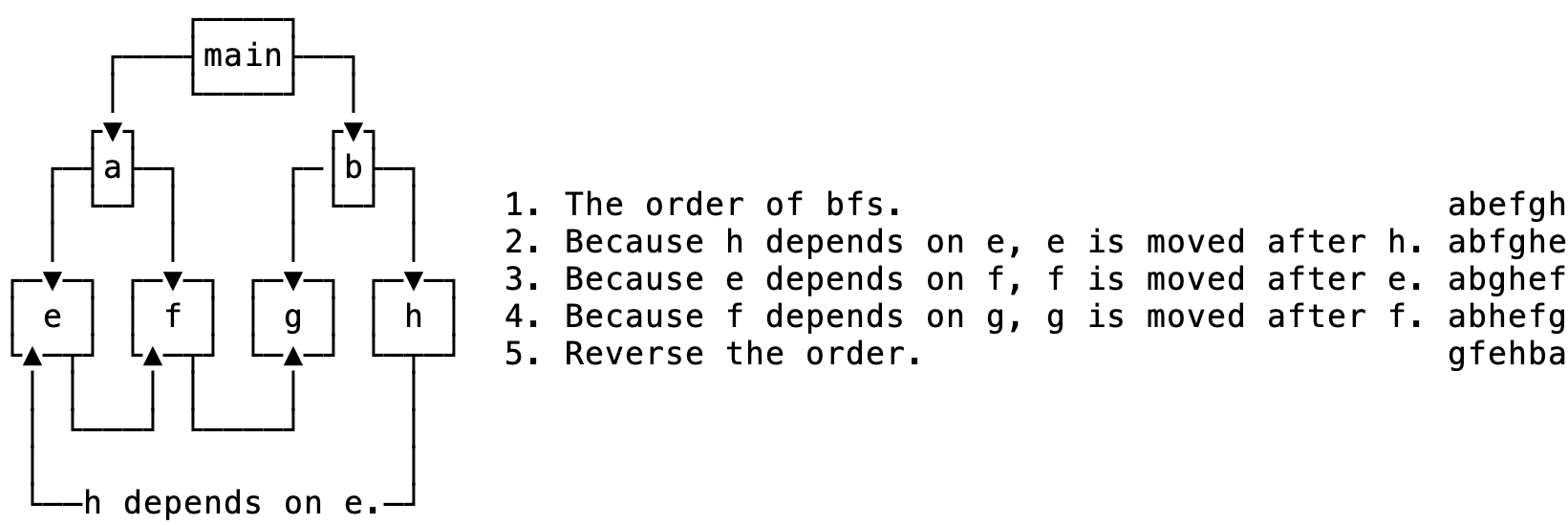

compile-need-sort :
    # Depth: 2.
    gcc lib.cpp -shared -fPIC -o libg.so
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -lg -o libf.so
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -lf -o libe.so
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -le -o libh.so
    # Depth: 1.
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -le -lf -o liba.so
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -lg -lh -o libb.so
    gcc main.cpp                                                                     \
            -Wl,--dynamic-linker=$(PWD)/glibc/build/install/lib/ld-linux-x86-64.so.2 \
            -L$(PWD) -Wl,-rpath=$(PWD) -la -lb                                       \
            -o main
    LD_DEBUG=all ./main 2>&1 | grep "calling init"

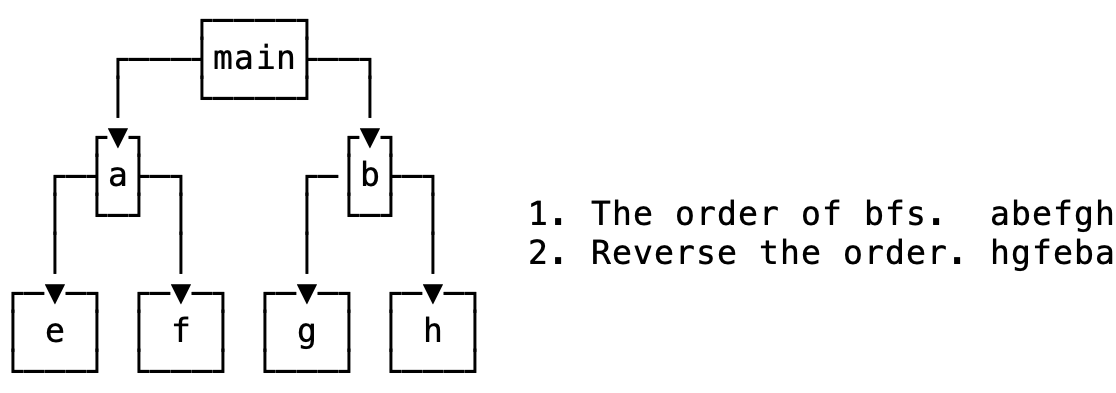

compile-dont-need-sort :
    # Depth: 2.
    gcc lib.cpp -shared -fPIC -o libg.so
    gcc lib.cpp -shared -fPIC -o libf.so
    gcc lib.cpp -shared -fPIC -o libe.so
    gcc lib.cpp -shared -fPIC -o libh.so
    # Depth: 1.
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -le -lf -o liba.so
    gcc lib.cpp -shared -fPIC -L$(PWD) -Wl,-rpath=$(PWD) -lg -lh -o libb.so
    gcc main.cpp                                                                     \
            -Wl,--dynamic-linker=$(PWD)/glibc/build/install/lib/ld-linux-x86-64.so.2 \
            -L$(PWD) -Wl,-rpath=$(PWD) -la -lb                                       \
            -o main
    LD_DEBUG=all ./main 2>&1 | grep "calling init"

Normal Case

makefile-compile-dont-need-sort

# make compile-dont-need-sort
LD_DEBUG=all ./main 2>&1 | grep "calling init"
     12859:     calling init: /home/demons/_dl_map_objects_validate/glibc/build/install/lib/libc.so.6
     12859:     calling init: /home/demons/_dl_map_objects_validate/libh.so
     12859:     calling init: /home/demons/_dl_map_objects_validate/libg.so
     12859:     calling init: /home/demons/_dl_map_objects_validate/libf.so
     12859:     calling init: /home/demons/_dl_map_objects_validate/libe.so
     12859:     calling init: /home/demons/_dl_map_objects_validate/libb.so
     12859:     calling init: /home/demons/_dl_map_objects_validate/liba.so

通过 LD_DEBUG=all 看到的初始化顺序与推断的顺序一致。

Special Case

makefile-compile-need-sort

# make compile-need-sort
LD_DEBUG=all ./main 2>&1 | grep "calling init"
     12802:     calling init: /home/demons/_dl_map_objects_validate/glibc/build/install/lib/libc.so.6
     12802:     calling init: /home/demons/_dl_map_objects_validate/libg.so
     12802:     calling init: /home/demons/_dl_map_objects_validate/libf.so
     12802:     calling init: /home/demons/_dl_map_objects_validate/libe.so
     12802:     calling init: /home/demons/_dl_map_objects_validate/libh.so
     12802:     calling init: /home/demons/_dl_map_objects_validate/libb.so
     12802:     calling init: /home/demons/_dl_map_objects_validate/liba.so

通过 LD_DEBUG=all 看到的初始化顺序与推断的顺序一致。
